The API Source Inspector – Fixed Equipment certification program, developed in cooperation with industry experts, qualifies individuals performing the important tasks of supplier quality surveillance.
The supplier quality industry has long had the need for a minimum standard of competency regarding inspectors working on fixed equipment assignments around the world. The industry expectations for this will be a mandatory requirement for inspectors sometime in the near future by all clients and projects.
Currently, statistics shows a fail rate for this exam is over 40%. So Intertek Technical Services, in conjunction with its Consulting & Training Division, have developed a 3-day training course that will cover all components of the API Source Inspector – Fixed Equipment study guide.
The Intertek conducted this course two times in the Houston Texas in 2015 and the “pass rate” was 100% for both classes, everyone who had participated in the preparatory course passed the API SI exam.
API SI Exam Preparatory course:
Who: Inspectors signed up to take the API SI EXAM
Where: Intertek office – 25025 I45N Spring, TX 77380
When: 1st course: November 18-20, 2015, 2nd course: December 1-3, 2015
Instructor: The course will be conducted by Mr. Bob Rasooli, an experienced instructor in API Source Inspector, API 510, API 570 and API 653 exam preparatory, ASME awareness and RBI courses. Bob has 18 years technical inspection experience in fixed and rotating equipment and is the Field Quality Supervisor (FQS) at Intertek for west coast region.
The API SI exam is administrated through computer based testing. The candidates have the option to test at one of the Prometric testing centers. So the candidates would not have to travel for API exam.
This is a new certification program launched by API, and oil and gas companies advising inspection agencies to utilize certified API SI inspector on their assignments but they defiantly will stop advising and will require this in future.
So I recommend to the source inspectors to make a little investment and participate in this preparatory course and then take API SI Exam and become a Certified Source Inspector. This certification will give them more credit.
Intertek API SI Exam Preparatory Training Course Outline
| Sessions | Day 1 | Day 2 | Day 3 |
|---|---|---|---|
| 1 | Welcome Message ASME Sec. VIII Div. 1 | ASME Sec. IX | ASME Sec. V, ASNT SNT-TC-1A, ASME Sec. V Exam, ASME Sec. V Exam Review |
| Break | |||
| 2 | ASME Sec. VIII Div. 1, API 572, ASME Sec. II Part A | ASME Sec. IX Exam | API RP 577, AWS Welding Inspector Handbook AWS D1.1 |
| Break | |||
| 3 | ASME Sec. VIII Div. 1 Exam | ASME Sec. IX Exam Review, ASME B31.3, ASME B16.5, API RP 578 | API 598, SSPC |
| Braek | |||
| 4 | ASME Sec. VIII Div.1 Exam Review | ASME B31.3 & B16.5, API 578 Exam | API SI Guideline, Day 3 Exam |
| Break | |||
| 5 | ASME Sec. IX | ASME B31.3 & B16.5 and, API 578 Exam Review, ASME Sec. V | Final Exam |
Executive Summary & Industrial Inspection Scope
In demanding industrial environments across Oil, Gas, Petrochemical, Offshore, and Heavy Process Infrastructure, rigorous compliance with ISO 9001 / ASME / API is essential to ensure operational integrity, personnel safety, and compliance with statutory regulatory frameworks. This technical specification provides QA/QC managers, procurement engineers, welding inspectors, and third-party inspection (TPI) agencies with an authoritative, field-tested guideline for “API Source Inspector Exam Preparatory Training Course”.
Ensuring compliance regarding api source inspector exam preparatory training course minimizes the risk of catastrophic asset failures, costly unscheduled shutdowns, and supplier non-conformances. The following technical sections delineate the scope of inspection, mandatory verification protocols, acceptance criteria, documentation deliverables, and root cause mitigation strategies.
Governing International Engineering Codes & Specifications
Verification and validation of API Source Inspector Exam Preparatory Training Course must strictly conform to the latest editions of the following international engineering codes and project specifications:
• **Primary Standard Reference:** ISO 9001 / ASME / API
• **Quality Management & Inspection Systems:** ISO 9001:2015 & ISO/IEC 17020 (Requirements for the operation of various types of bodies performing inspection)
• **Material Compliance & Traceability:** EN 10204 Type 3.1 / 3.2 Inspection Certificates for metallic and non-metallic pressure-retaining components
• **Personnel Qualification:** ASNT SNT-TC-1A / ISO 9712 for NDT personnel, CSWIP 3.1 / AWS CWI for welding inspection, and NACE / AMPP Level 2/3 for coating and corrosion personnel
• **Statutory & Health Safety Directives:** ASME Boiler & Pressure Vessel Code (BPVC), API Standards, OSHA, and regional local authority regulations.
Step-by-Step Quality Control & Inspection Procedure
The execution of quality surveillance for API Source Inspector Exam Preparatory Training Course is structured across four progressive QA/QC intervention phases:
Stage 1: Pre-Inspection & Engineering Document Review (Review Point – R)
Prior to commencement of any physical activities or manufacturing operations related to API Source Inspector Exam Preparatory Training Course, the contractor or vendor must submit all technical submittals to the Owner or TPI agency for formal review and approval.
- Verification of approved Inspection and Test Plan (ITP) identifying all Hold (H), Witness (W), Review (R), and Surveillance (S) intervention points.
- Cross-examination of Material Test Reports (MTR / Mill Certificates) against standard design specifications (ISO 9001 / ASME / API).
- Review and approval of specific Procedure Qualification Records (PQR), Welding Procedure Specifications (WPS), or calibration certificates.
- Verification that all measurement instruments, gauges, and NDT equipment hold valid calibration certificates from ISO/IEC 17025 accredited calibration laboratories (within 6 to 12 months validity).
Stage 2: In-Process Witnessing & Fabrication Control (Witness / Hold Point – W/H)
During the active execution phase, the certified inspector performs physical surveillance to ensure strict adherence to certified drawings, manufacturing procedures, and code tolerances.
- Verification of material traceability (heat number, heat treatment lot, plate number) transferred accurately onto fabricated components.

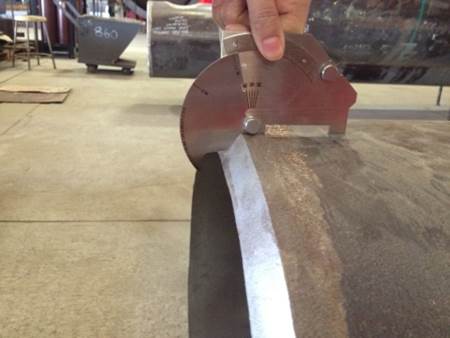

- Dimensional verification and visual inspection using calibrated gauges, micrometer depth dials, or laser alignment systems.
- Monitoring ambient environmental parameters (relative humidity, dew point, substrate temperature) when applying surface treatments, welding preheat, or pressure testing.
- Witnessing non-destructive examination (RT, UT, MT, PT, PMI) at specified percentages according to project critical rating and code requirements.
Stage 3: Final Acceptance, Pressure/Performance Testing & Marking (Hold Point – H)
The culminating milestone where the fully assembled or completed item is subjected to definitive acceptance tests in the presence of the Owner’s Third-Party Inspector (TPI).
- Execution of pressure proof tests (Hydrostatic at 1.3x to 1.5x MAWP or Pneumatic test) with dual calibrated pressure gauges and temperature recorders.
- Full visual inspection of completed surfaces, welds, protective coatings, and flange contact faces for absence of mechanical damage or code defects.
- Validation of permanent stamping, low-stress die markings, nameplate data verification, and barcoding in strict conformity with project specs.
- Clearing all open punch-list items, non-conformance reports (NCRs), and concession requests prior to issuance of the release note.
Stage 4: Packing, Preservation & Inspection Release (Inspection Release Certificate – IRC)
Ensuring the inspected equipment is adequately protected against atmospheric corrosion, mechanical shock, and marine transit degradation.
- Inspection of rust preventative coatings, desiccant bags, flange face blind protectors, and vapor corrosion inhibitor (VCI) packaging.
- Verification of heavy-lift sea fastening lugs, center-of-gravity markings, and export crating compliance (ISPM 15 wooden crating).
- Compilation and signing of the final Inspection Release Certificate (IRC / Shipping Release) and manufacturer data dossier (MDR).
Technical Acceptance Criteria & Tolerances Matrix
All measurements and physical characteristics must comply with the engineering tolerances and acceptance thresholds tabulated below:
| Inspection Parameter / Test Item | Applicable Standard & Clause | Permissible Tolerance / Acceptance Limit | Verification Method | Intervention Type |
|---|---|---|---|---|
| Material Chemical & Mechanical Verification | ISO 9001 / ASME / API / EN 10204 3.1 | 100% compliance with minimum tensile, yield, elongation, and impact values (Charpy V-Notch at design temp) | Optical Emission Spectrometry (OES) / MTR Verification | Review (R) |
| Visual & Dimensional Tolerances | ISO 9001 / ASME / API / Project Specs | Zero cracks, lack of fusion, severe pitting; dimensional tolerances within ±1.0mm to ±3.0mm per code drawings | Calibrated Vernier, Bridge Cam, Depth Micrometer | Witness (W) |
| Non-Destructive Examination (NDT) | ASME Sec V / ASNT SNT-TC-1A | 100% compliant with code acceptance criteria; zero planar defects or unpermitted volumetric indications | Radiographic (RT) / Ultrasonic (UT) / Magnetic Particle (MT) | Hold (H) |
| Pressure / Proof Testing (Hydrostatic) | ISO 9001 / ASME / API / ASME Sec VIII | Test pressure maintained for minimum 30 to 60 mins; zero pressure drop, zero leakage or visible sweating | Dual calibrated Bourdon pressure gauges + Chart Recorder | Hold (H) |
| Surface Prep & Protective Coating Quality | SSPC-SP / NACE / ISO 8501 | Surface profile 50 – 75 µm; Dry Film Thickness (DFT) within 80/20 rule of specified nominal thickness | Replica Tape (ASTM D4417) & Magnetic Gauge (SSPC-PA 2) | Witness (W) |
| Nameplate & Final Preservation Verification | API / ASME / Client Specs | 316L SS nameplate securely affixed with correct design code, MAWP, design temp, and national board stamping | Physical visual check & VCI preservation verification | Hold (H) |
Mandatory QA/QC Dossier & Inspection Deliverables
Prior to the final issuance of the Inspection Release Certificate (IRC), the contractor and vendor must compile and submit the verified manufacturer data record containing:
- Approved Inspection & Test Plan (ITP) with sign-off stamps by Contractor, Client, and TPI.
- Material Test Reports (MTR / Mill Test Certificates EN 10204 Type 3.1 or 3.2).
- Certified Welding Procedure Specifications (WPS), Procedure Qualification Records (PQR), and Welder Performance Qualifications (WPQ).
- Calibration Certificates for all test instruments and measuring equipment (NABL / ISO 17025 accredited).
- Non-Destructive Examination Reports (RT, UT, MT, PT, PMI, Ferrite Content) evaluated by Level II/III inspectors.
- Heat Treatment & PWHT Time-Temperature Recorder Charts with thermocouple layout drawings.
- Hydrostatic / Pneumatic Pressure Proof Test Certificate with calibrated chart recorder logs.
- Surface Preparation and Protective Coating Inspection Reports (Daily environmental log, blast profile, DFT summary).
- Non-Conformance Report (NCR) and Concession Disposition Closeout Log.
- Official Inspection Release Certificate (IRC / Shipping Release Note) permitting packing and dispatch.
Common Non-Conformances & Field Mitigation Strategies
Based on extensive third-party inspection field records in oil & gas projects, the following deviations require heightened surveillance:
Defect / Hazard: Material Grade Substitution & Lack of Heat Traceability
Root Cause: Uncontrolled workshop storage, missing color coding, or unverified supplier sub-tier procurement without EN 10204 3.1 documentation.
Preventative Action: Enforce strict 100% Positive Material Identification (PMI) prior to cutting, and mandatory material receiving inspection with physical stamping cross-referenced to original mill test certificates.
Defect / Hazard: Out-of-Tolerance Fit-Up & Alignment Mismatch
Root Cause: Poor thermal cutting, thermal distortion from excessive preheat, or inadequate jigging and tacking arrangements.
Preventative Action: Establish a mandatory Witness/Hold point at joint fit-up before root pass deposition. Use calibrated Hi-Lo gauges to verify bevel angle, root face, and root gap according to the qualified WPS.
Defect / Hazard: Premature Coating Delamination & Blistering Under Film
Root Cause: Excessive soluble salt contamination (>20 mg/m²) left on the substrate, blast cleaning below dew point (<3°C above dew point), or oil/moisture in the blasting compressor air line.
Preventative Action: Perform Blotter Test (ASTM D4285) daily on compressed air, enforce Bresle patch chloride testing, and apply primer within 4 hours of abrasive blasting before rust blooming initiates.
Defect / Hazard: Pressure Drop During Final Hydrostatic Proof Testing
Root Cause: Micro-leakage through temporary test flange gaskets, entrapped air pockets inside vessel high points, or inadequate temperature stabilization.
Preventative Action: Ensure thorough venting at all high-point vents until bubble-free fluid emerges, allow minimum 15-minute temperature stabilization between filling medium and ambient metal, and torque all blind flanges with calibrated torque wrenches.
Frequently Asked Questions (FAQ)
Q: What are the mandatory qualifications for inspectors verifying API Source Inspector Exam Preparatory Training Course?
A: Inspectors must hold recognized international certifications applicable to the discipline. For welding and fabrication: CSWIP 3.1/3.2, AWS CWI, or API 510/570 Source Inspector. For NDT: ISO 9712 or ASNT SNT-TC-1A Level II minimum. For coatings: NACE / AMPP Level 2 or FROSIO Level III. Additionally, the inspection agency must operate under an ISO/IEC 17020 accredited quality management system.
Q: How does PtroTek resolve non-conformances (NCRs) encountered during vendor surveillance?
A: When a deviation from certified drawings or ISO 9001 / ASME / API is detected, the inspector issues a formal Non-Conformance Report (NCR) within 24 hours. The vendor must submit a Root Cause Analysis (RCA) and proposed disposition (Rework, Repair, or Concession). Work on the affected component is halted (Hold Point) until the Owner’s engineering authority approves the disposition and a re-inspection confirms full compliance.
Q: What is the difference between Witness (W) and Hold (H) points in an Inspection & Test Plan (ITP)?
A: A Hold Point (H) is a mandatory milestone where fabrication or testing CANNOT proceed without the physical presence of the designated client or third-party inspector. Written clearance or stamping is strictly required. A Witness Point (W) requires prior notification (typically 24 to 48 hours) to the inspector; however, if the inspector fails to attend at the scheduled time, fabrication or testing may proceed with subsequent review of the test records.
Q: Can international clients review inspection reports and photos in real time?
A: Yes. PtroTek provides comprehensive Flash Reports issued within 24 hours of inspection completion, followed by detailed formal inspection reports accompanied by high-resolution calibrated photographic evidence, dimension logs, and signed vendor test records for complete global transparency.
